Heavy Duty Winder™ Bike Rack
Overview
Description

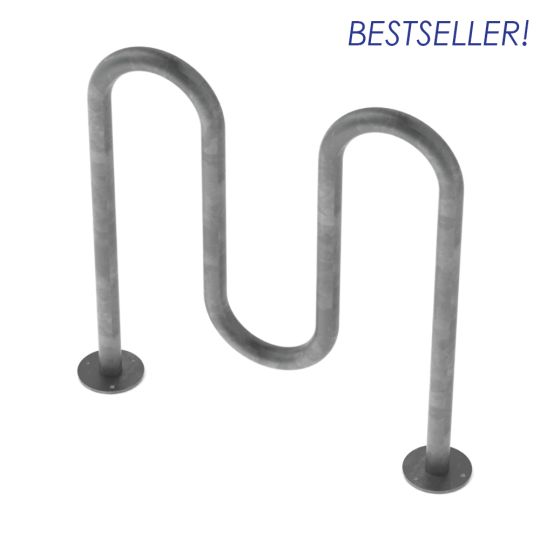

Heavy Duty Winder loop style bike racks meet or exceed the specifications of similar serpentine bike racks.
The loop dimensions are designed to provide sufficient clearance for bicycle handlebars, pedals, and seats. Compared to other wave bike racks where clearances are not always available.
- 42" height (from grade to top of rack)
- 12 1/2" loop width
- 2 3/8" OD structural steel tubing (2" Pipe)
The classic loop bike rack style is a great choice where short-term bike parking is needed.
Optional Grout Covers are available as well. They will not fit on the intermediate supports of the larger winding bike racks.
Finishes
Heavy Duty Winder Bike Racks are available in Galvanized, Powder Coated, or Stainless Steel
Measurements
HW238-3 | 3-Bikes | 1 Loop | 2-3/8" tube | 15" L x 42" H*
HW238-5 | 5-Bikes | 3 Loop | 2-3/8" tube | 39" L x 42" H*

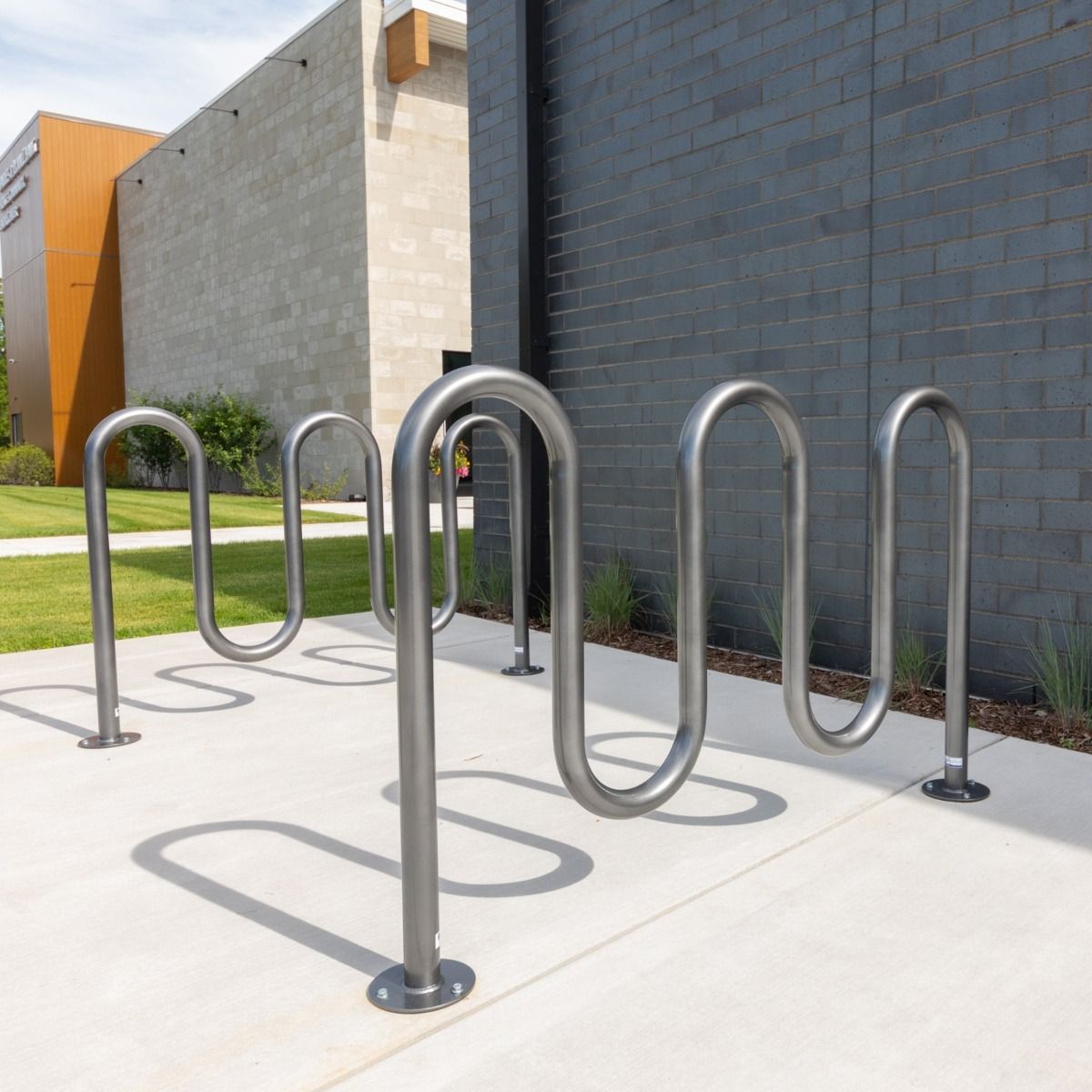

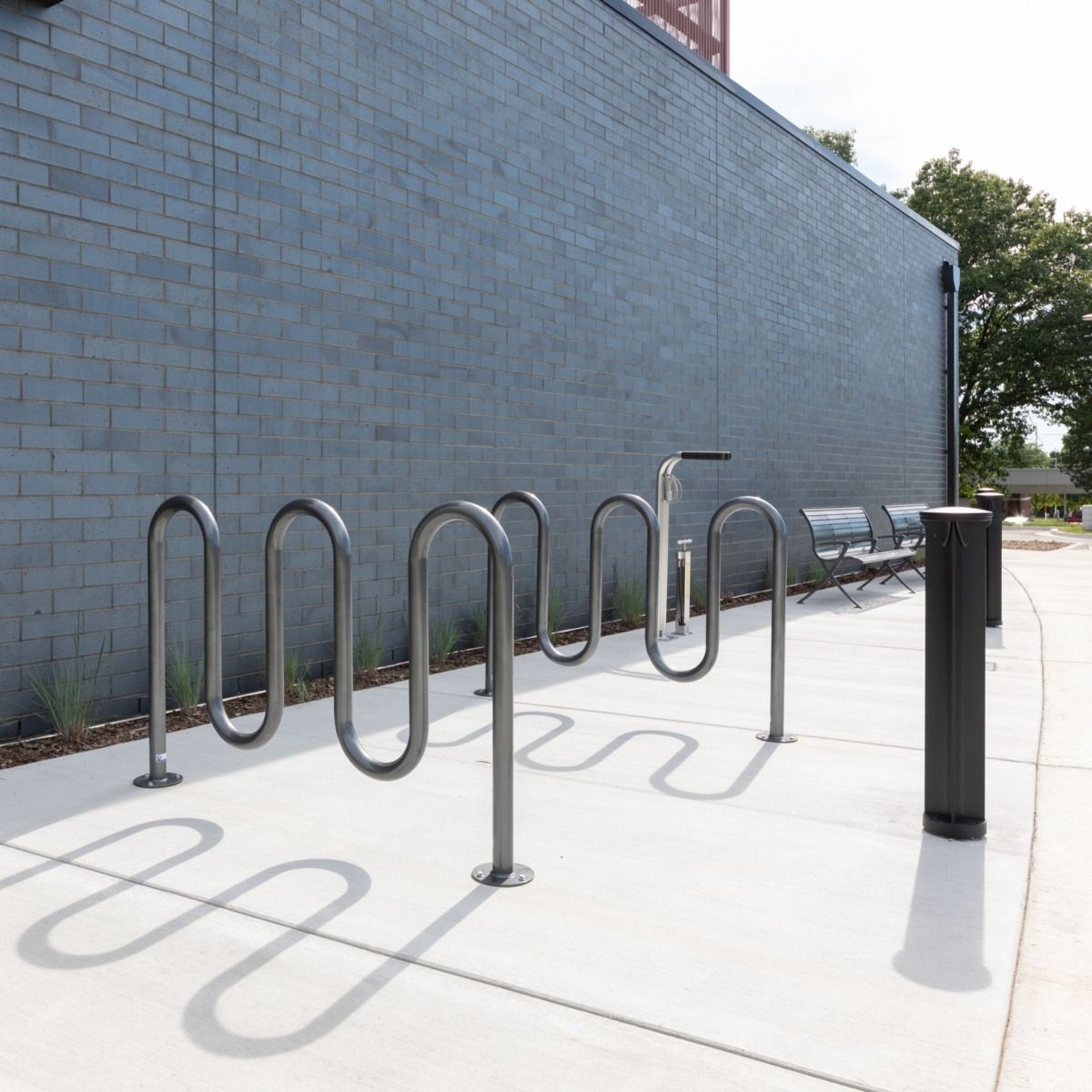

HW238-7 | 7-Bikes | 5 Loop | 2-3/8" tube | 64" L x 42" H*

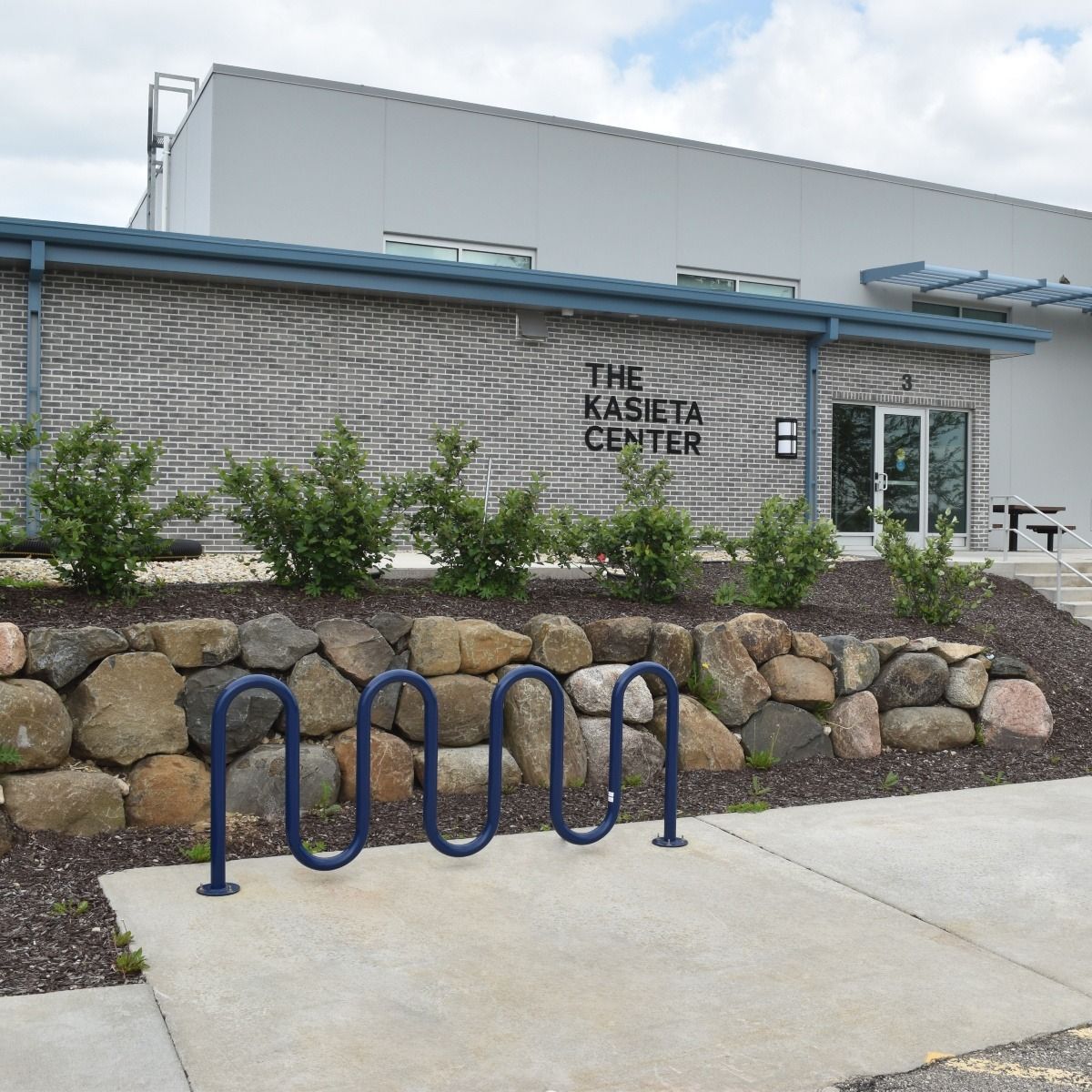

HW238-9 | 9-Bikes | 7 Loop | 2-3/8" tube | 88" L x 42" H*
HW238-11 | 11-Bikes | 9 Loop | 2-3/8" tube | 113" L x 42" H*
HW238-13 | 13-Bikes | 11 Loop | 2-3/8" tube | 138" L x 42" H*
HW238-15 | 15-Bikes | 13 Loop | 2-3/8" tube | 163" L x 42" H*
HW238-17 | 17-Bikes | 15 Loop | 2-3/8" tube | 187" L x 42" H*
HW238-19 | 19-Bikes | 17 Loop | 2-3/8" tube | 212" L x 42" H*
HW238-21 | 21-Bikes | 19 Loop | 2-3/8" tube | 237" L x 42" H*
*Height measurement is from grade to top of bike rack. See CAD files below for details
Mounting OptionsOther Loop-style Bike Racks
In Ground or Surface Mounted
More Loop-style Bike Racks
Heavy Duty Challenger | 36" Height | 12 1/2" Loop Width | 2-3/8" Tube
Challenger Plus | 36" Height | 22 1/2" Loop Width | 2-3/8" Tube
Winder Plus | 36" Height | 12 1/2" Loop Width | 1-5/8" Tube
Capital Square | 36" Height | 18 5/16" Loop Width | 2" Square Tube
