Shark™ Bike Rack

Description

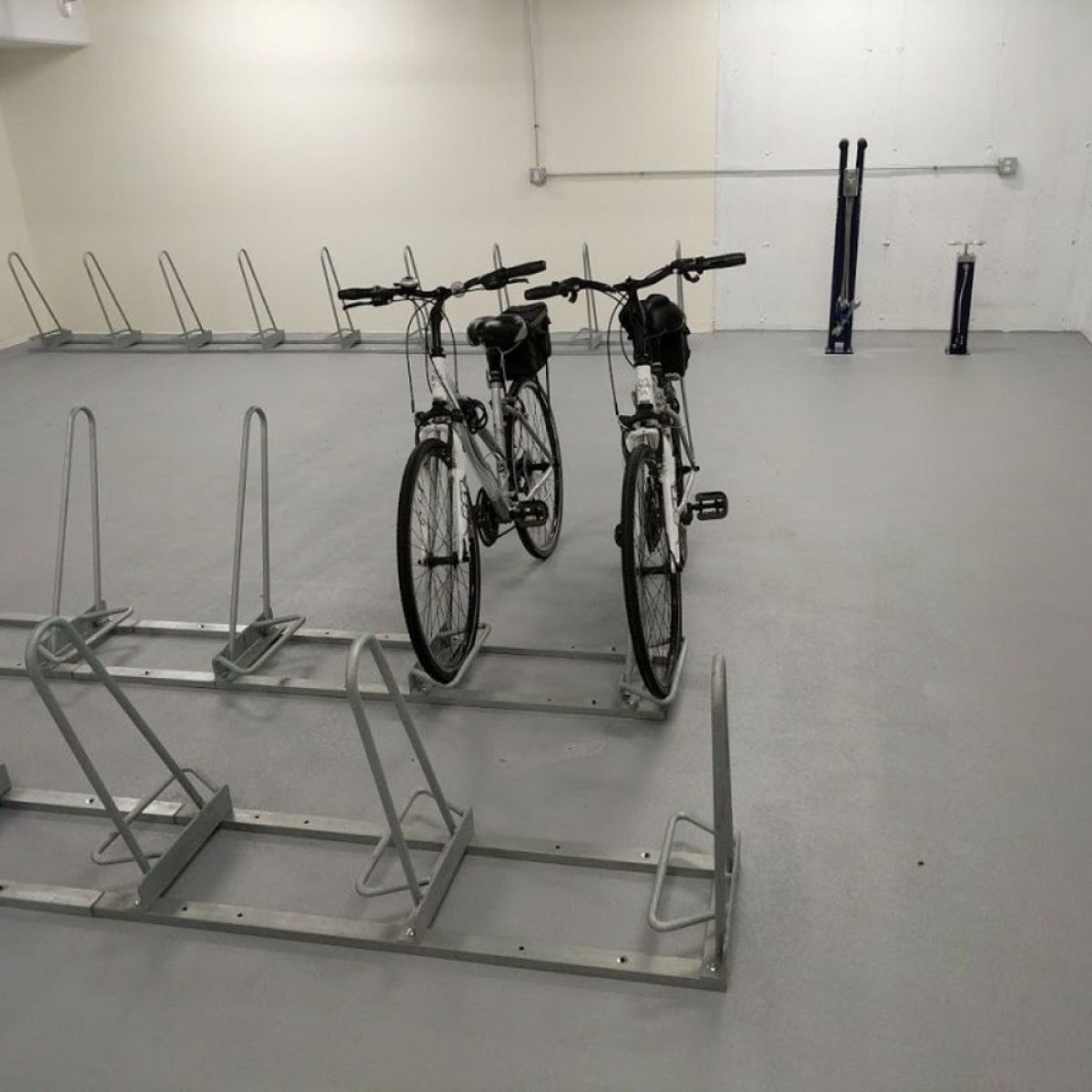

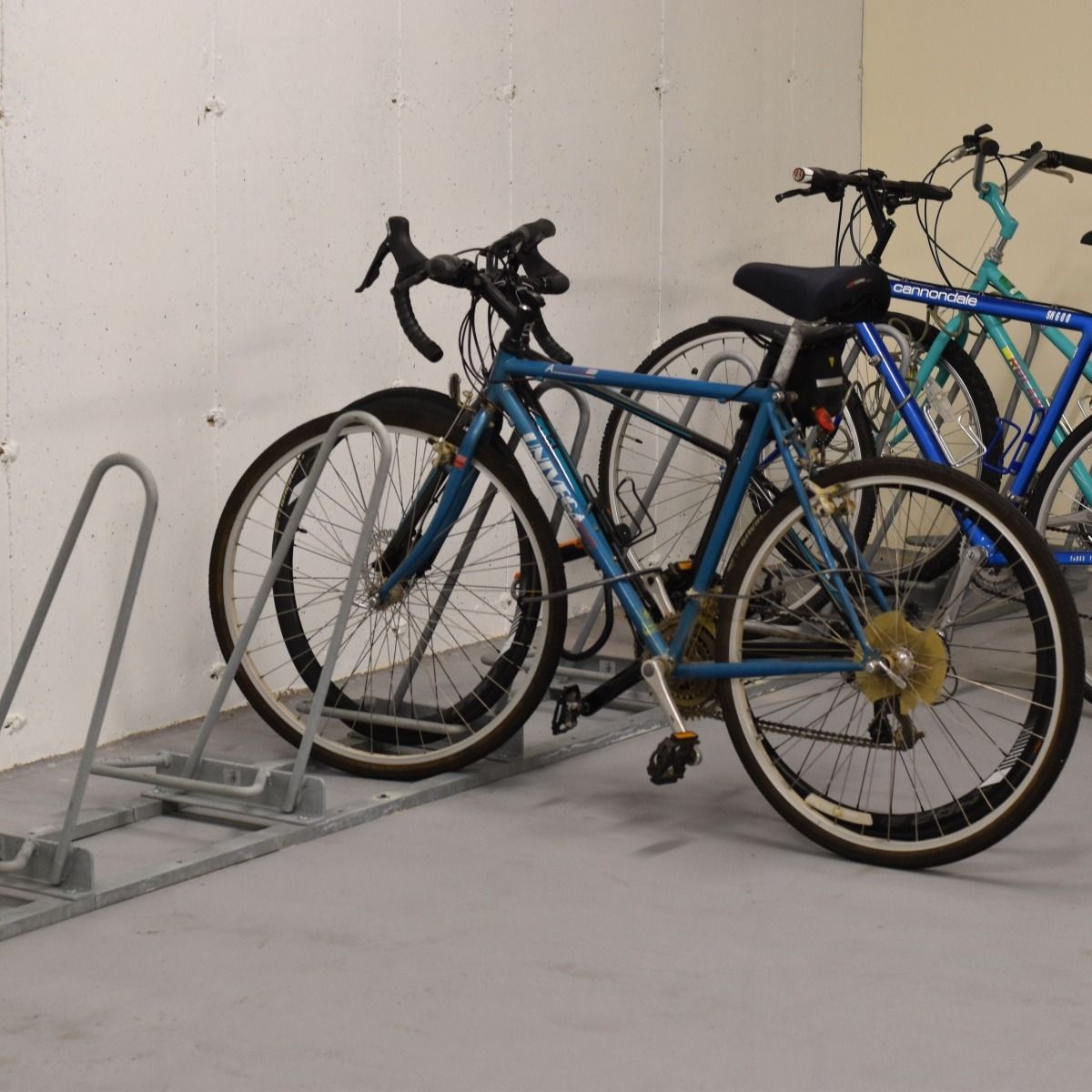

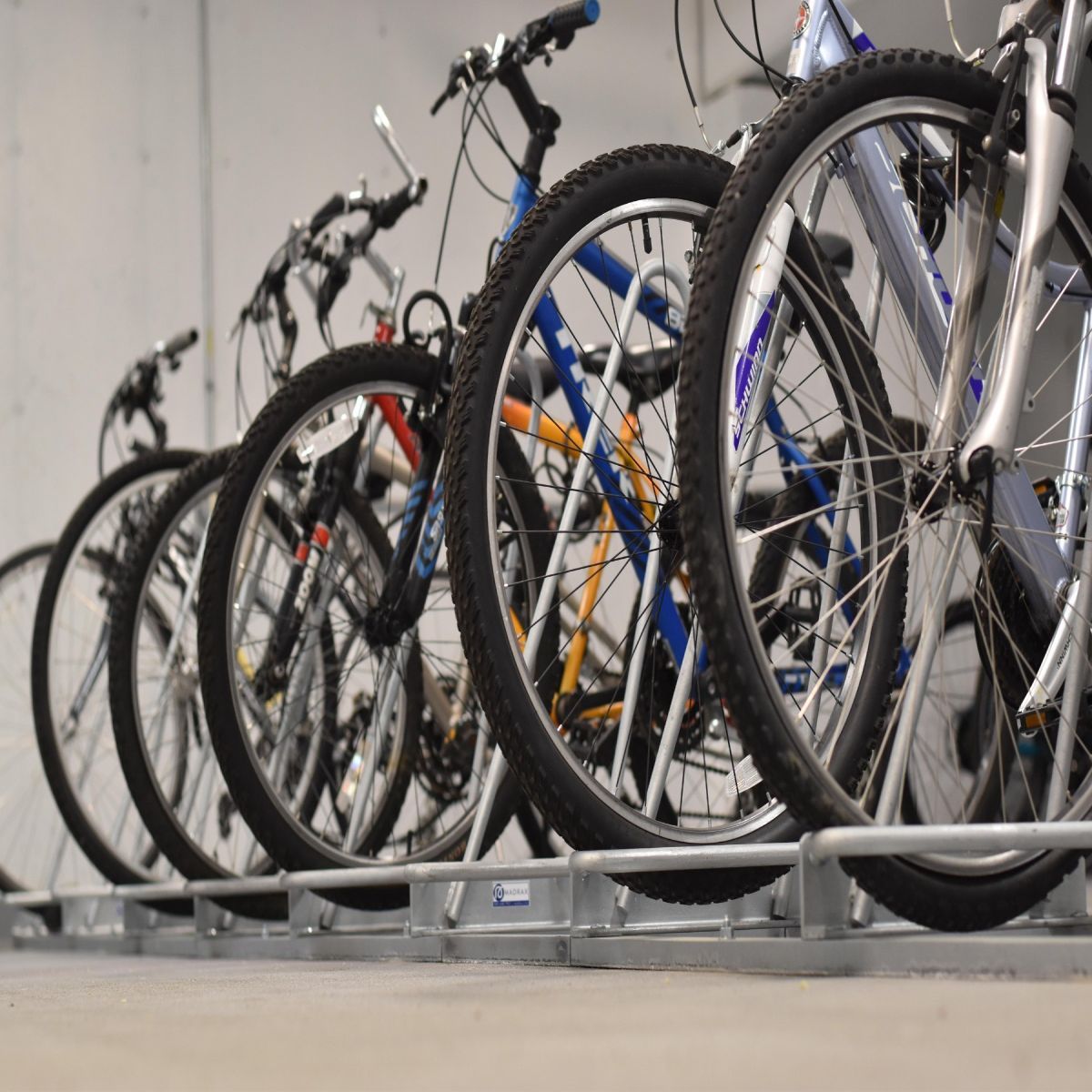

The Shark™ bike rack is a practical and compact bicycle security option ideal for both high-capacity, short-term bike parking and long-term bike storage in bike rooms or garages. The Shark™ bike rack features front wheel stops and solid lean rods that secure a bike in place while locked down with a “U” lock. This rail-mounted bike rack comes with 2" 'C' channel rails that are always galvanized. These rails allow the unit to remain freestanding or secured to concrete. A bike-friendly vinyl cushion coating option is also available - please contact us for details.

Finishes

Available in a galvanized or one of our powder coat colors.

*Note: Rails are Galvanized regardless of finish selection

Measurements

SHK-1 | 15" W x 29" H x 6-1/4" L | 1-bike

SHK-SNG-2 | 22" W x 30" H x 29" L | 2-bikes

SHK-SNG-3 | 22" W x 30" H x 53" L | 3-bikes

SHK-SNG-4 | 22" W x 30" H x 77" L | 4-bikes

SHK-SNG-5 | 22" W x 30" H x 101" L | 5-bikes

SHK-SNG-6 | 22" W x 30" H x 125" L | 6-bikes

SHK-DBL-2 | 25" W x 30" H x 17" L | 2-bikes

SHK-DBL-3 | 25" W x 30" H x 29" L | 3-bikes

SHK-DBL-5 | 25" W x 30" H x 53" L | 5-bikes

SHK-DBL-7 | 25" W x 30" H x 77" L | 7-bikes

SHK-DBL-9 | 25" W x 30" H x 101" L | 9-bikes

SHK-DBl-11 | 25" W x 30" H x 125" L | 11-bikes

*Height measurement is from grade to top of bike rack. See CAD files below for details

Mounting Options

Surface Mount (1 bike) or Rail Mount (2-11 bike options)
